The vibration characteristics and isolation requirements of punch presses vary significantly depending on machine weight, installation location, and operating conditions. In a previous article, we discussed the vibration isolation solution for 7.5-ton and 14-ton heavy-duty floor-mounted punch presses using the ALJ-40 series isolators. Today, we would like to share a dedicated vibration isolation solution for a small manual punch press.
Equipment Overview
A small manual punch press weighing approximately 350 kg was installed on the ground floor. Although the punching frequency was relatively low, the impact forces generated during operation caused significant structural vibration, resulting in disturbances to occupants on the upper floor.
Recommended Solution
With tens of thousands of successful vibration isolation applications, Anlijing Vibration Isolation Technology has extensive experience in solving challenging conditions involving lightweight equipment, high-impact loads, and vibration-sensitive environments.
Based on the operating conditions, we recommended the ALJ-3805 Rubber Vibration Isolator from the ALJ-38 Series.
Advantages of the ALJ-38 Rubber Vibration Isolator
1. Premium Rubber Material for Long-Term Reliability
Manufactured with a high-quality natural rubber compound, the isolator offers excellent elastic recovery and damping characteristics, effectively absorbing and dissipating impact energy generated during punching operations.

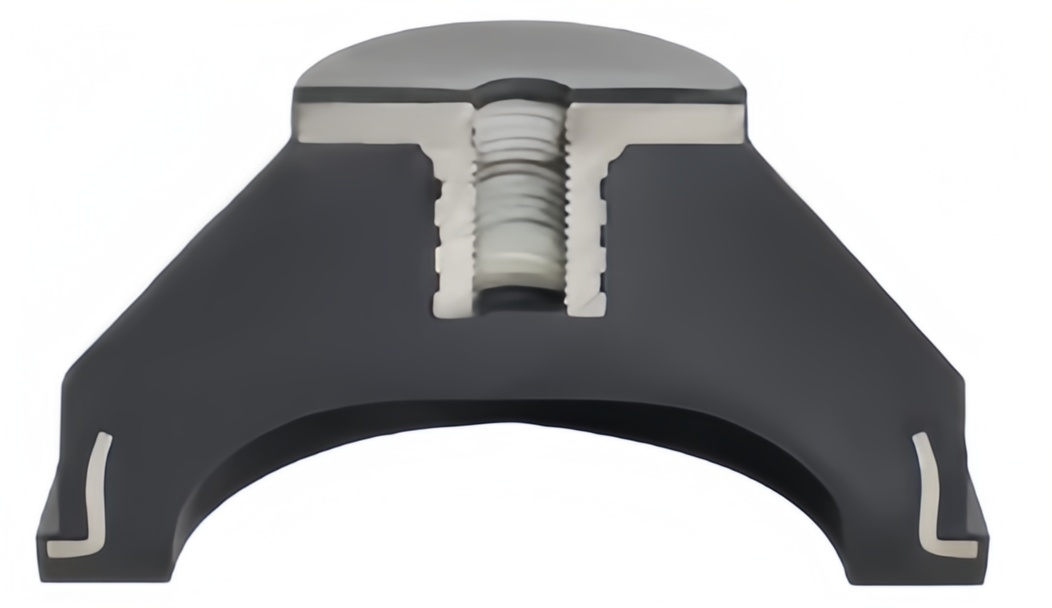

2. Unique Structure for Superior Vibration Isolation
The isolator operates through true shear deformation. Its large internal cavity design maximizes rubber deflection capability, achieving a natural frequency as low as 7 Hz. This provides excellent vibration isolation performance and effectively reduces vibration transmission to surrounding structures.
3. High-Strength Construction with Excellent Load Capacity
The central steel insert is machined as an integrated component, providing exceptional structural strength.
The unique serrated bonding profile increases the contact area between the rubber and metal components, improving durability and load transfer efficiency.
Additionally, the reinforced bottom steel ring is thicker and stronger, allowing the isolator to maintain its shape under long-term compressive loading without collapse or permanent deformation, ensuring a long service life.

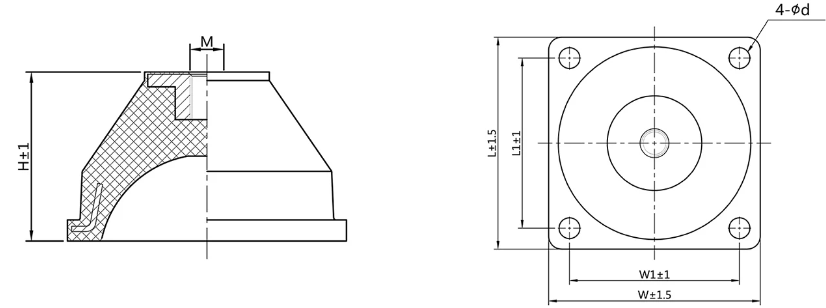

Product Dimensions and Specifications
ALJ-3805 Rubber Vibration Isolator
Model | Load Range (kg) | Dimensions (mm) |
L | L1 | W | W1 | H | d | M |
ALJ-3805 | 120-180 | 132 | 106 | 132 | 106 | 80 | 13 | 16 |
