Punching presses come in various types, each with different vibration and noise reduction requirements. Depending on the machine’s weight, design, impact frequency, processed material, precision requirements, and installation location, different vibration isolation solutions may be needed.

Anlijing Vibration Control Technology Co., Ltd. offers a range of products to address various impact conditions, including:

• ALJ-40 Rubber Isolators

• ALJ-40B Rubber Isolators

• ALJ-52 Air Spring Isolators

• ALJ-50 Air Spring Isolators

• ALJ-132 Solid-State Damping Isolators

• Rubber Pad + Steel Plate Designs

Here are two case studies applying the ALJ-40 series for punching press vibration control:

Case Study 1

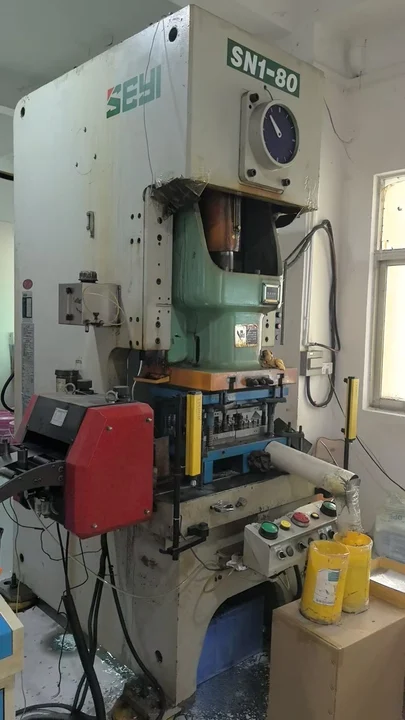

Equipment Details:

• Machine weight: 7.5 tons

• Impact frequency: 80 strokes/min

• Processed material: Metal parts

• Precision requirement: High

• Installation location: First-floor concrete

• Vibration impact: Need to reduce impact force transmitted to the floor

Recommended Solution:
Based on the above conditions, Anlijing recommends the ALJ-40 rubber isolator, specifically the ALJ-4004 model.

Case Study 2

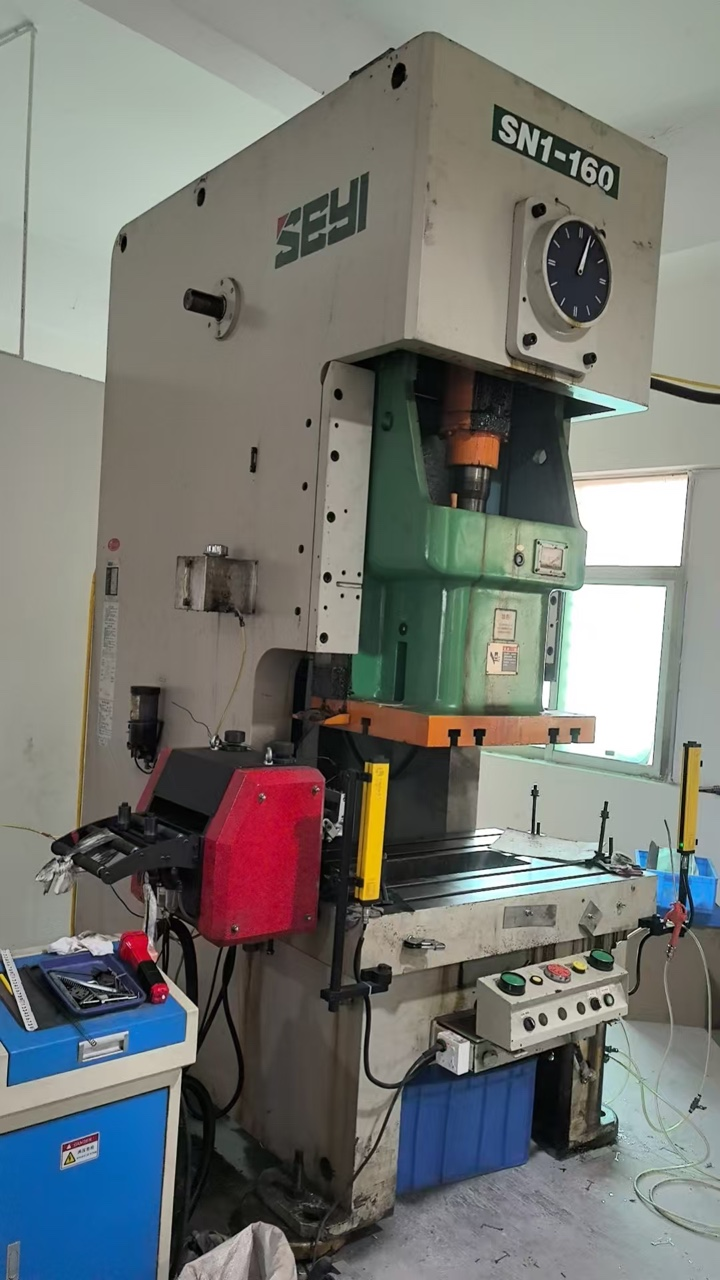

Equipment Details:

• Machine weight: 14 tons

• Impact frequency: 80 strokes/min

• Processed material: Metal parts

• Precision requirement: High

• Installation location: First-floor concrete

• Vibration impact: Need to reduce impact force transmitted to the floor

Recommended Solution:
Based on the above conditions, Anlijing recommends the ALJ-40 rubber isolator, specifically the ALJ-4007 model.

Advantages of the ALJ-40 Series

The ALJ-40 series is specially designed for large equipment such as punching presses and die-cutting machines:

• High-Quality Steel Housing:
  Fabricated from stamped steel, surface treated with anti-rust coating, smooth and glossy finish.

• High-Elasticity Rubber Core:

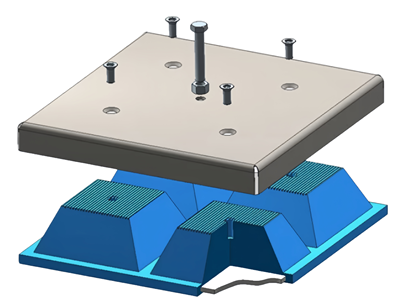

  The isolator features a trapezoid-shaped high-elastic rubber element, combining the high load capacity of compression-type isolators with the low-frequency response of shear-type isolators, effectively damping impact vibrations. The structure is robust and durable.

• Integrated Rubber-Steel Base Plate:
  The bottom is vulcanized as a single unit with the steel base, ensuring solid construction and simple installation. No inertial foundation is needed, reducing machine movement and maintaining stability.

• Height Adjustability:
  Equipped with large-diameter bolts and nuts, the isolator height can be adjusted to compensate for uneven floor surfaces or uneven machine weight distribution.

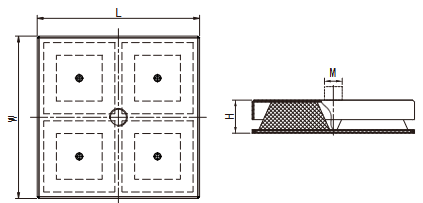

Product Specifications

ALJ-4004 Model

ALJ-4007 Model
