Vibration-Free Floors: How to Isolate Your Vibratory Feeders Efficiently

Upload time：2025-06-04 Publisher：安立静

Equipment Overview

Vibratory Feeders

Three vibratory feeders installed on the floor caused significant vibration and noise on the lower level.

Large Units: 2 × 80 kg
Small Unit: 1 × 50 kg

Solution: ALJ-38 Natural Rubber Isolators

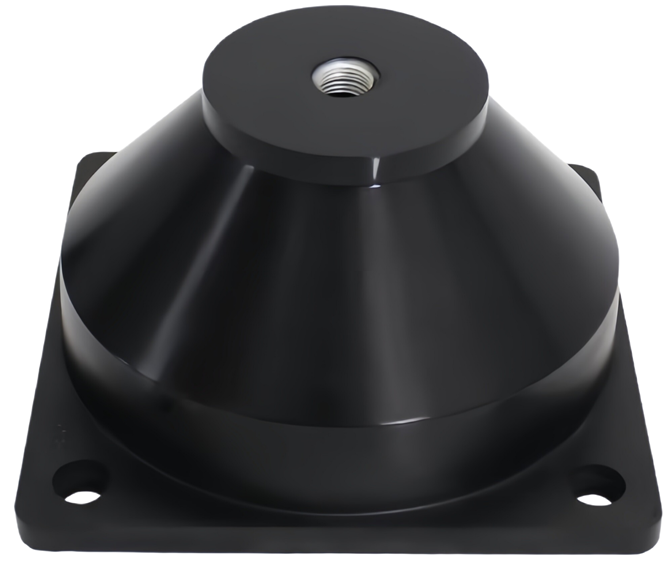

ALJ-38-1

Anlijing Vibration Control Co., Ltd. recommended:

Large Units: ALJ-3802
Small Unit: ALJ-3801

Why Choose ALJ-38 Isolators?

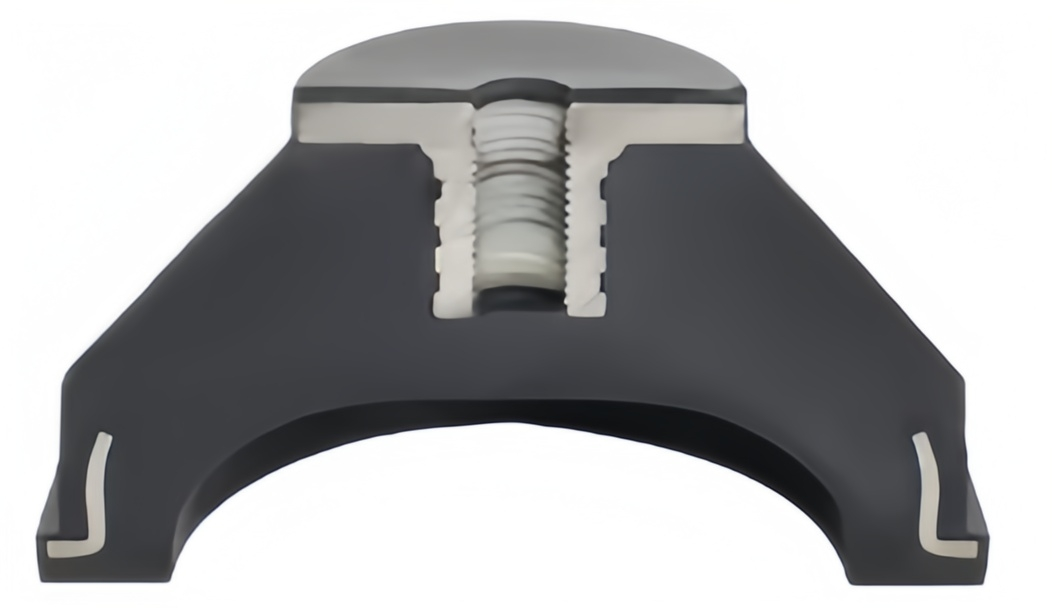

ALJ-38-2

Premium Material & Long Service Life
Made from high-quality natural rubber with excellent elastic recovery. Each batch undergoes tensile testing to exceed national standards, ensuring reliable vibration isolation.
Innovative Structure for High-Efficiency Vibration Isolation
The unique “large cavity” design allows pure shear deformation, lowering natural frequency to 7 Hz and effectively blocking vibration transmission.
High-Strength, Durable Construction
Machined metal inserts with serrated design increase contact area. ChemLock adhesive ensures long-term bonding without delamination.
Compression-Resistant & Stable
Reinforced bottom rings maintain shape under heavy loads, providing long-lasting performance.

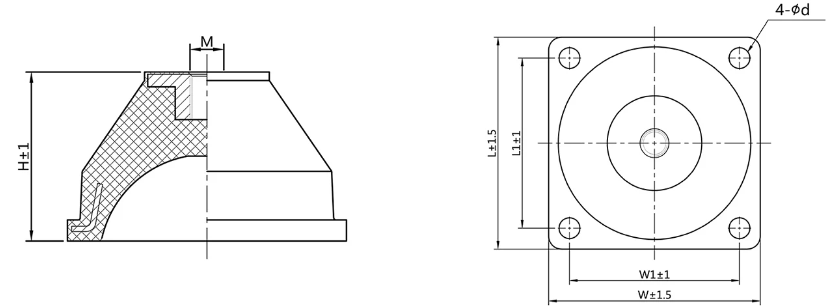

ALJ-38-3

Performance Metric	Standard (GB)	Standard (Anlijing)	Conclusion
Tensile Strength (MPa)	≥12	≥18	Meets and exceeds standard
Elongation at Break (%)	≥300	≥420
Permanent Deformation at Break (%)	≤25	≤25
Shore A Hardness Variation	±5	±3
Adhesion Strength (MPa)	≥3.9	≥5

Product Specifications

Model	Load Range (Kg)	Dimensional Specifications（mm）
Model	Load Range (Kg)	L	L1	W	W1	H	d	M
ALJ-3801	5-20	77	61	77	61	50	8	10
ALJ-3802	20-50	77	61	77	61	50	8	10

Tip: Higher rubber hardness increases load capacity for the same size.
