Working Principle

The stone remover is mainly used to separate heavy impurities such as stones mixed in grain. Its core principle leverages the difference in specific gravity (density) among materials: an upward airflow generated by a fan suspends lighter grains, while a vibrating motor drives the screen plate in high-frequency reciprocating motion, allowing heavier stones to be “screened out” and separated.

Under the combined effects of airflow impact, motor excitation, and mechanical motion of the screen plate, the equipment generates strong and continuous vibration. When such equipment is installed on an upper floor, it can easily cause structural resonance of the floor slab, posing a threat to building safety and severely disturbing the normal production environment of the workshop.

Equipment Parameters

• Installation location: 5th floor of the plant, concrete floor structure

• Load parameters: Equipment deadweight 1,325 kg, operating material load approx. 50 kg, total working load approx. 1,375 kg

Product Selection Recommendation
For the above conditions, the ALJ-52 series air spring isolator is strongly recommended. With excellent vibration isolation and noise reduction performance, it ensures smooth equipment operation and extends service life.

Specific model: ALJ-52005 air spring isolator

Upgrade suggestion for higher stability:
If the site has high requirements for limiting equipment sway, or if excessive sway may affect production, it is recommended to select one size larger (i.e., ALJ-52006). A larger model provides significantly improved lateral stiffness, thus offering better stability.

Product Advantages

• Low-frequency vibration isolation core technology:
  Adopts integral vulcanization of natural rubber, with thick and resilient rubber body. By compressing air to achieve non-linear stiffness, a natural frequency as low as 3–5 Hz is obtained, effectively isolating vibration at the source.

• Damping stabilization system:
  Built-in damping tube and damping oil design quickly dissipate vibration energy and reduce equipment amplitude, effectively preventing vibration transmission. The upper and lower thick support steel plates enhance lateral shear resistance, providing uniform and stable support.

• Convenient installation:
  No complicated foundation work required – installs directly between equipment feet and the floor slab, saving installation time and cost.

Strict Quality Inspection
Before each production batch, Anlijing tests key rubber indicators to ensure good elasticity and air tightness, guaranteeing that only qualified products leave the factory.

Dumbbell-shaped specimen tensile test data:

【Product Information】

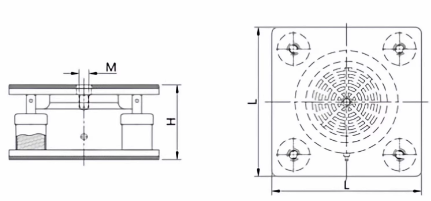

Key dimensions and parameters of ALJ-52005 air spring isolator
