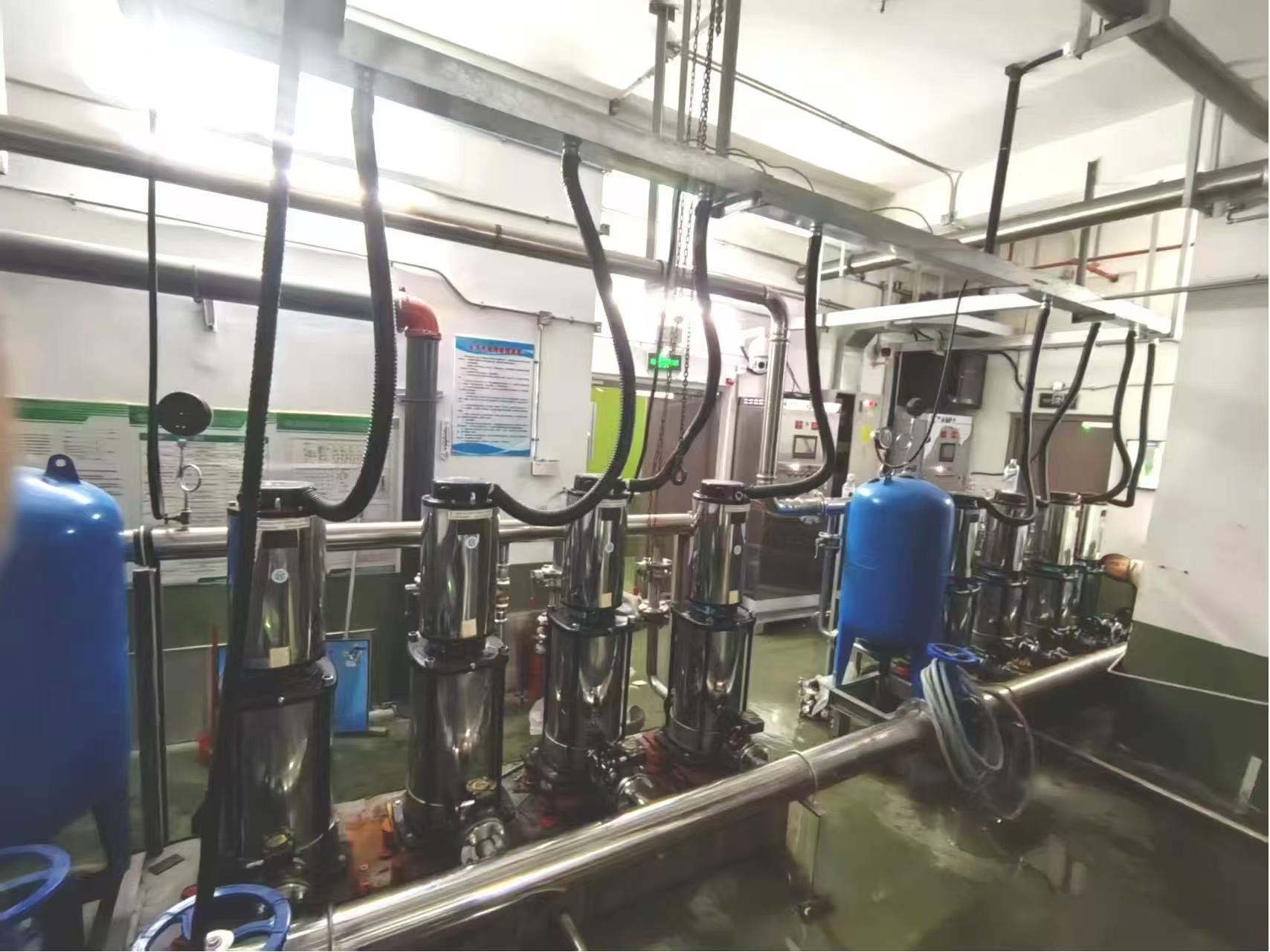

Vibration in pump rooms is usually the result of multiple factors acting together, including the pump itself, connected piping, structural supports, and wall penetrations. Effective vibration control requires a comprehensive approach that addresses all major vibration transmission paths.
1. Pump Isolation
Vertical pumps are typically compact and lightweight. For most applications, Anlijing Vibration Technology recommends the ALJ-38 Rubber Vibration Isolator, which offers simple installation and excellent cost-effectiveness. For projects requiring higher isolation performance and where sufficient installation space is available, a concrete inertia base combined with spring isolators can be adopted.

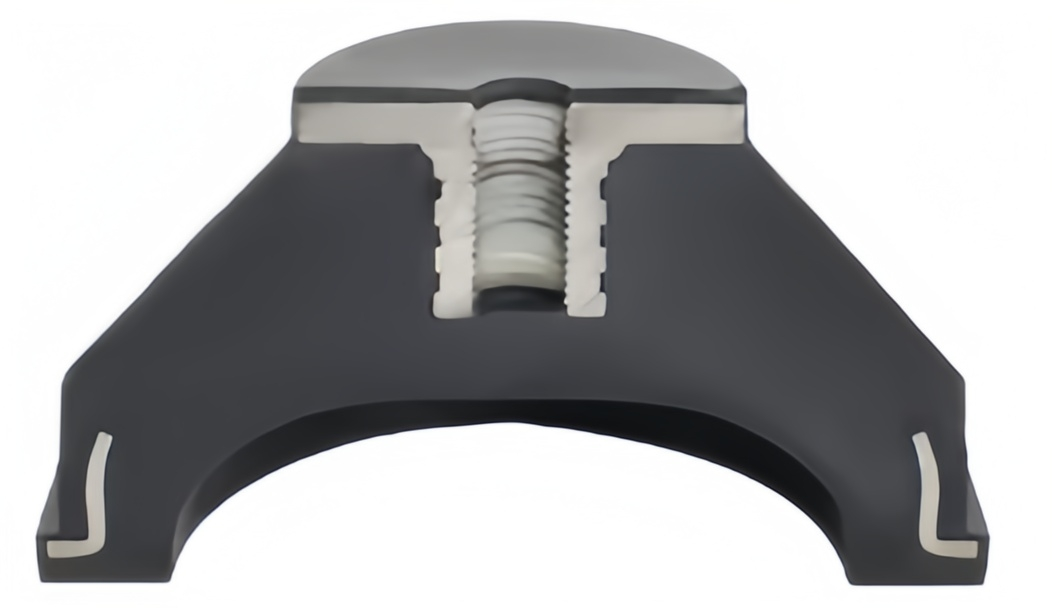

Advantages of the ALJ-38 Rubber Isolator
1. Premium Material for Long Service Life
2. Innovative Structure for Superior Isolation
Unique large-cavity design maximizes rubber deformation efficiency.
Natural frequency as low as 7 Hz, providing effective vibration isolation and reducing vibration transmission to surrounding structures.
3. High Structural Strength and Load Capacity
Integral steel insert design ensures strong bonding between rubber and metal components.
Serrated bonding surfaces increase adhesion strength.
Reinforced bottom steel ring prevents collapse or permanent deformation under long-term loading, ensuring extended service life.
2. Piping Vibration Control
Flexible connectors should be installed at pipe connections wherever possible. Rigid steel supports should be replaced with vibration-isolated supports to interrupt vibration transmission paths and reduce structure-borne noise.
Depending on the piping configuration and project requirements, the following solutions can be applied:

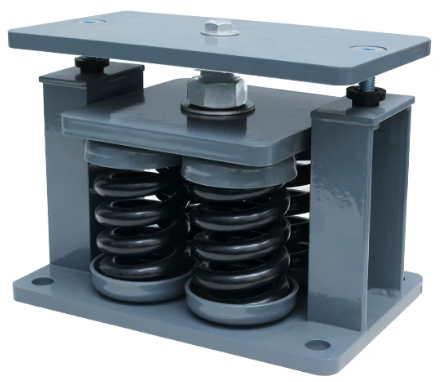

ALJ-17 & ALJ-04 Spring Isolators
Both models feature:
The primary difference is static deflection:
The greater deflection of the ALJ-04 provides enhanced vibration isolation performance, particularly for low-frequency applications.

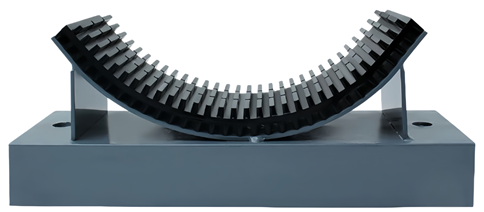

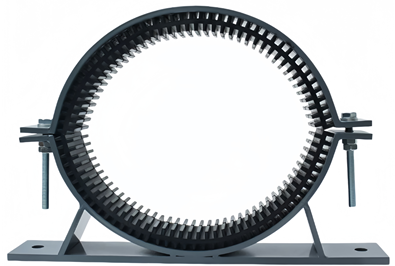

ALJ-71 & ALJ-72 Rubber Pipe Isolators
Key features include:
High-quality natural rubber with excellent elasticity and durability
Special ribbed and recessed geometry allowing greater deformation and improved isolation efficiency
Corrosion-resistant steel components with high load-bearing capacity
3. Wall Penetration Treatment
Pipe penetrations through walls are often overlooked sources of vibration transmission.
To prevent structure-borne vibration from passing through building walls:
Enlarge the wall opening around the pipe.
Install high-quality resilient rubber padding around the penetration.
Avoid direct rigid contact between the pipe and the wall structure.
Recommended Product
ALJ-46F Rubber Isolation Pad
This solution effectively reduces vibration transmission through wall penetrations and helps prevent secondary noise issues.
Important Note

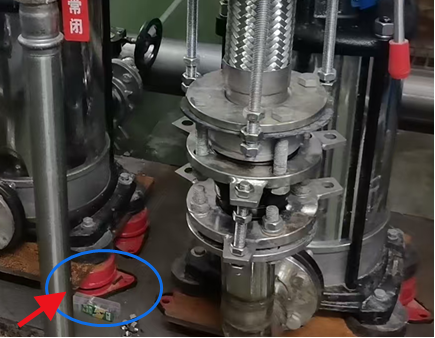

Many pump installations are equipped with conventional ZD-type rubber mounts. In practice, these mounts often provide limited vibration isolation performance and may not meet the requirements of modern vibration control projects.
For retrofit projects with stringent vibration reduction targets, selecting the correct vibration isolation solution is critical to achieving satisfactory results.
Conclusion
Successful pump room vibration mitigation requires a holistic approach that addresses:
✔ Pump isolation
✔ Piping vibration control
✔ Flexible connections
✔ Wall penetration treatment
✔ Proper isolator selection
By analyzing the entire vibration transmission path and selecting appropriate isolation products, vibration and noise levels can be significantly reduced, improving equipment reliability and building comfort.
